Freud 1/8" Radius Canoe Joint Bit (2 Variants)
*** Order together with our other products, enjoy Free Add-on Shipping (No Extra Shipping Costs) ***
Producing joints for projects such as circular planters and canoes

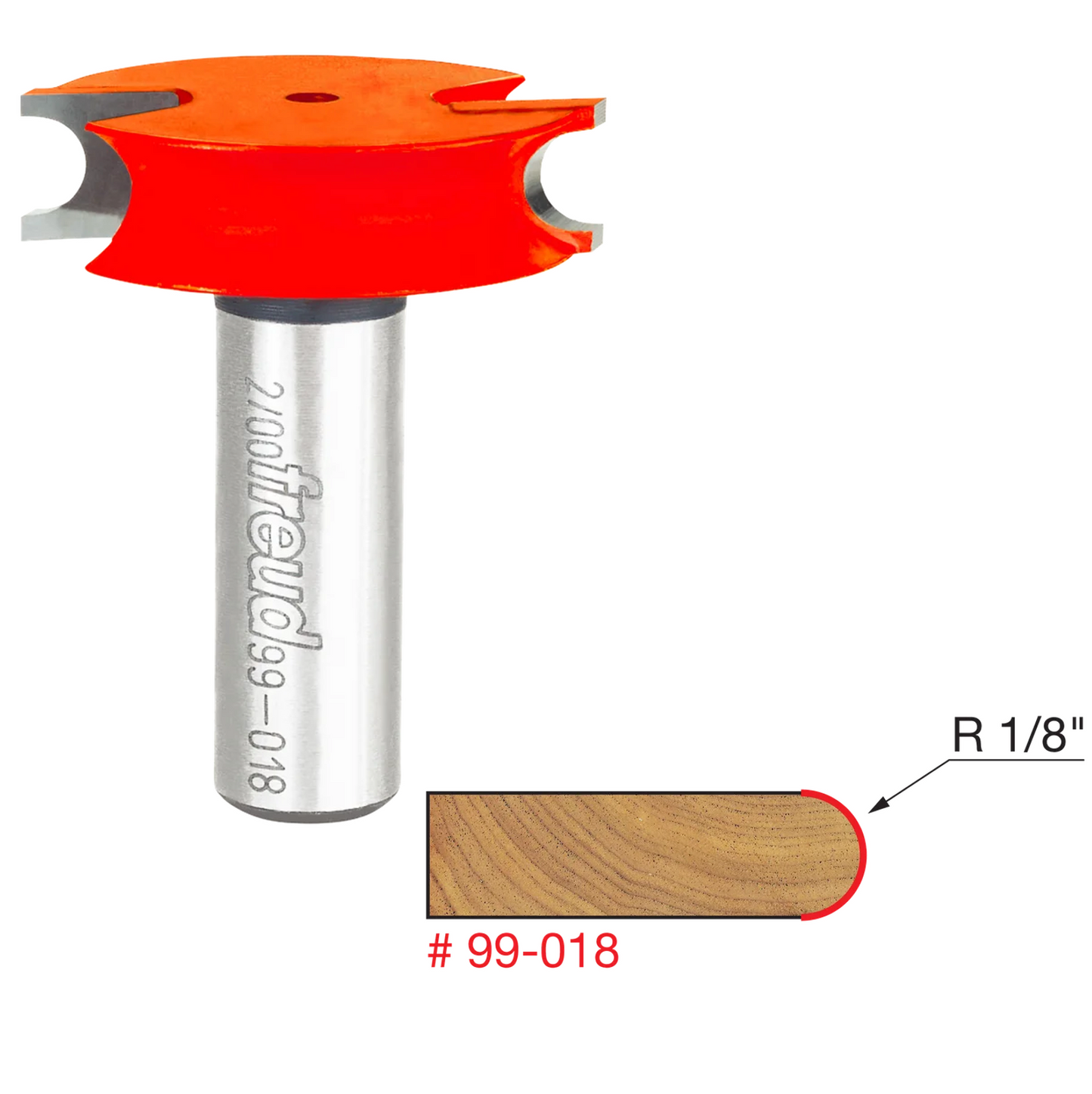

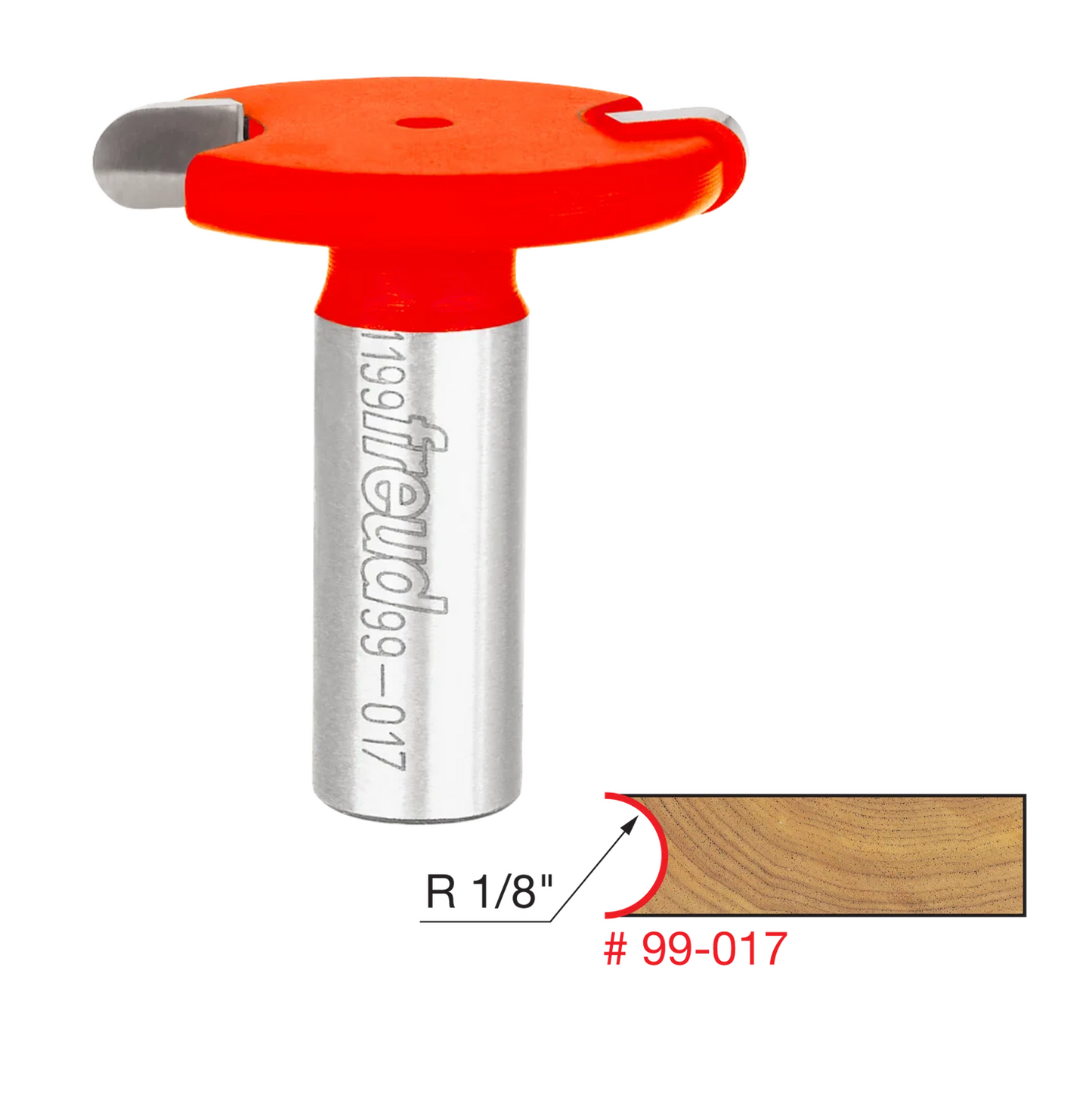

Originally designed to produce beautiful cedar strip canoes, these matching bits are also a great choice for smaller projects like curving planters, baskets and more. Bit 99-017 cuts the concave flute shape in one edge of a 1/4" thick strip, and 99-018 cuts the mating convex bead in the other edge. Use these bits to rout hardwood or softwood in CNC or table-mounted routers.
- Mill perfectly matched joints in 1/4" material
- Cuts hardwood, softwood and composite materials
- Use in CNC or table-mounted portable routers
- Freud Perma-SHIELD® Coating
Ideal For: Canoes, planters and other curved projects
| Part # | 99-017 | 99-018 |
| NUMBER OF CUTTERS | 2 | 2 |
| OVERALL DIA. (D) | 1-1/2" | 1-1/2" |
| OVERALL LENGTH (H) | 1-11/16" | 1-7/8" |
| SHANK DIA. (A) | 1/2" | 1/2" |
| CARBIDE HEIGHT (H) | 1/4" | 3/8" |
| RADIUS (R) | 1/8" | 1/8" |
