Freud Bevel Trim Bit (2 Variants)
*** Order together with our other products, enjoy Free Add-on Shipping (No Extra Shipping Costs) ***

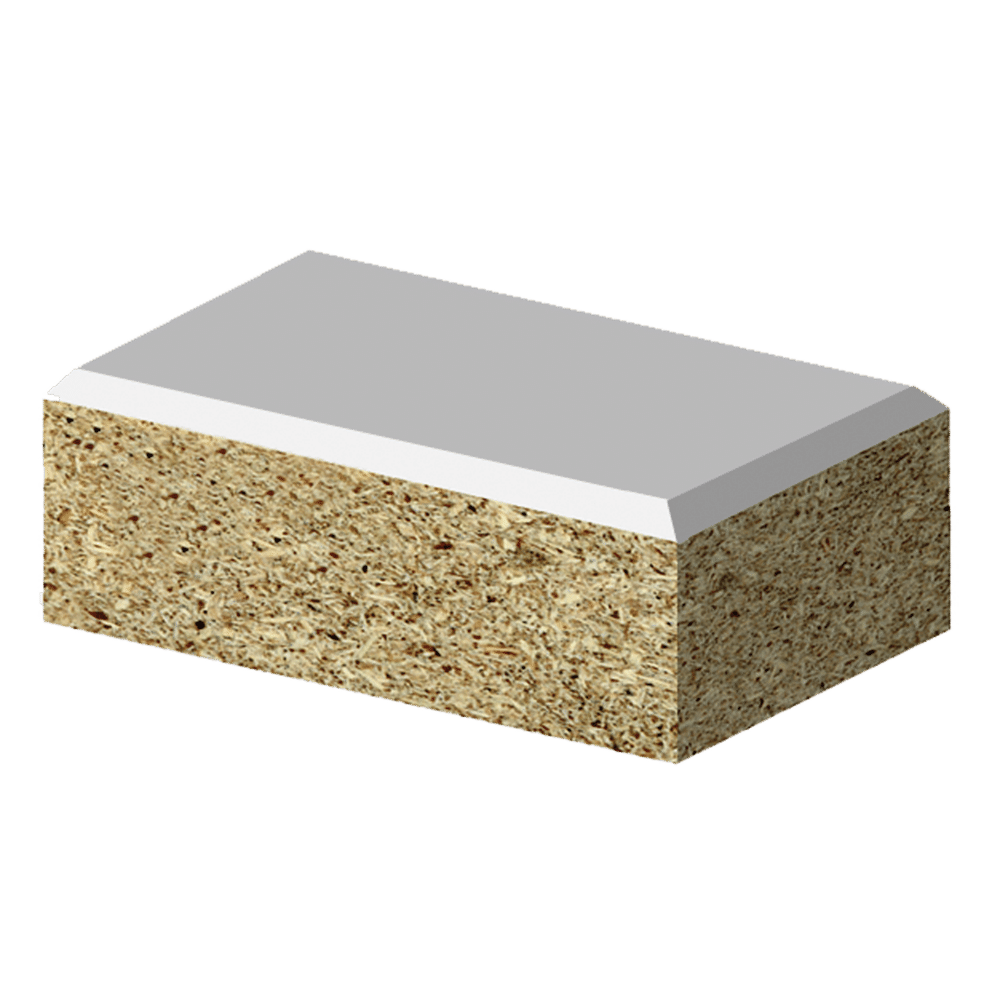

Routing a clean, finished edge on plastic laminates
Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.
- Rout a clean, smooth edge of laminates with little of no time-consuming filing
- Cuts all plastic laminates
- 41-Series includes ball bearing guide, 66-100 is cost-effective solid carbide
- Use in hand-held or table-mounted routers and laminate trimmers
Ideal For: Beveled edge on plastic laminates
| Part # | 41-102 | 41-110 |
| ANGLE (D) | 15° | 8° |
| BEARING DIA. (B) | 1/2" | 1/2" |
| NUMBER OF CUTTERS | 2 | 2 |
| OVERALL DIA. (D) | 19/32" | 9/16" |
| OVERALL LENGTH (H) | 1-7/8" | 2" |
| SHANK DIA. (A) | 1/4" | 1/4" |
| CARBIDE HEIGHT (H) | 9/32" | 13/32" |
